Chapter 3

Control Plane and Data Plane Operations

Page 34 • Core Protocols & Operations

Learning Objectives

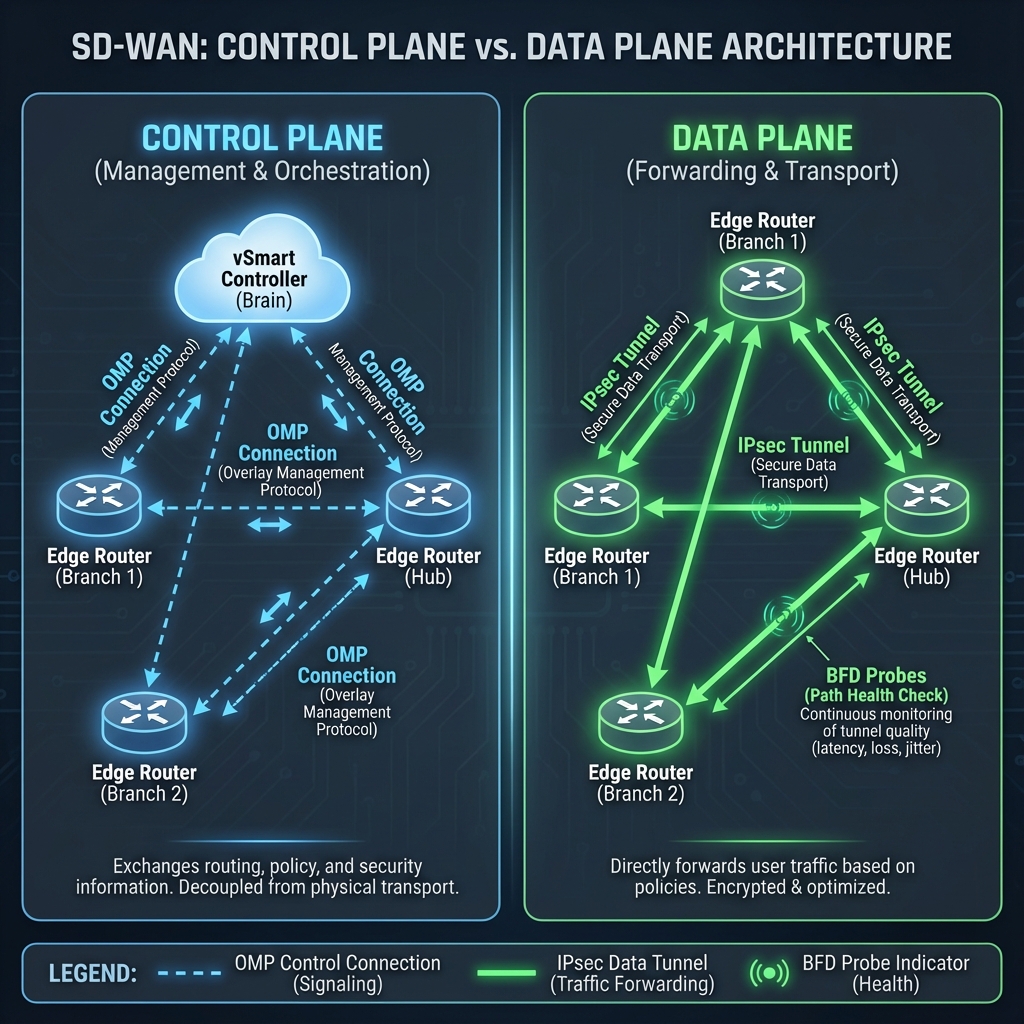

Control Plane vs Data Plane Diagram

Gambar 3.1 - Perbandingan Control Plane (OMP) dan Data Plane (IPsec) dalam SD-WAN

OMP - Overlay Management Protocol

OMP adalah protokol proprietary Cisco yang mengelola control plane untuk SD-WAN overlay network.

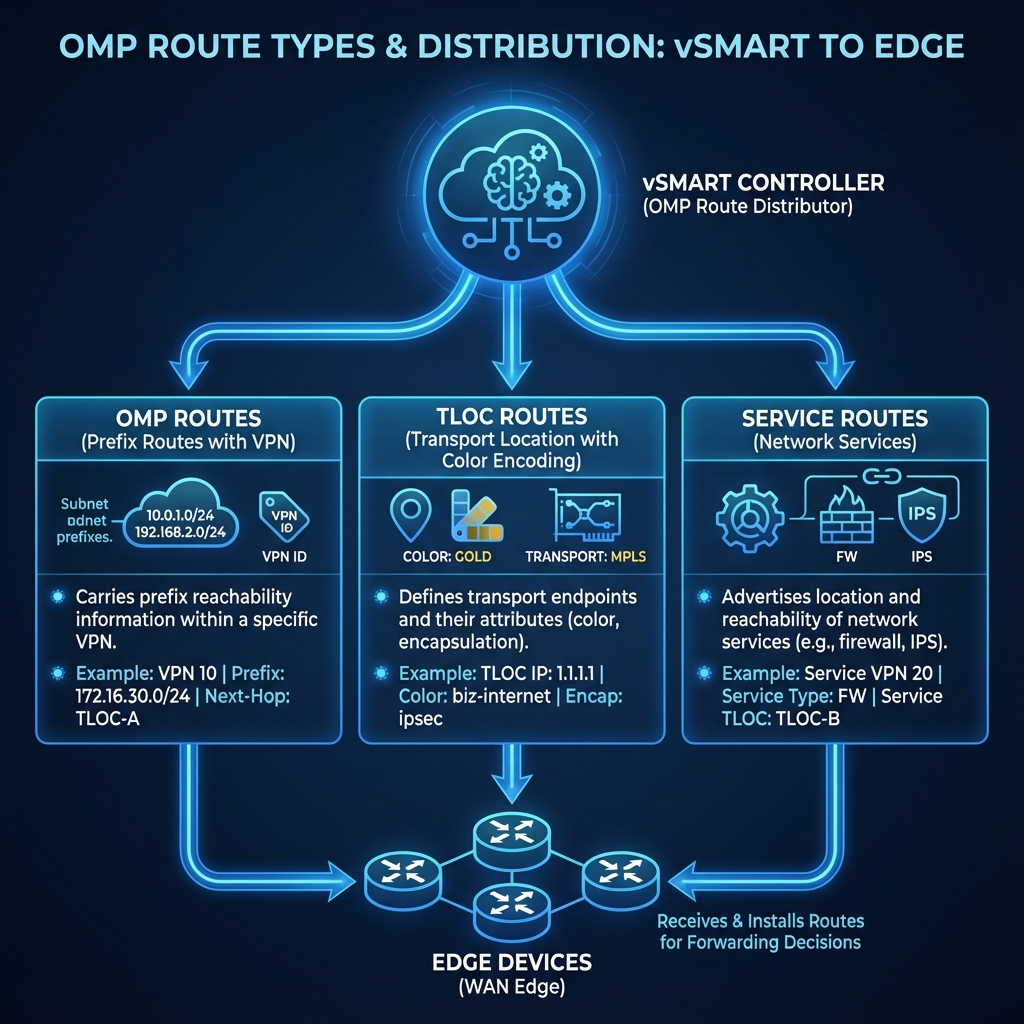

OMP Route Types Diagram

Gambar 3.2 - Tipe-tipe OMP Routes: OMP Routes, TLOC Routes, dan Service Routes

OMP Route Types:

Route Type Description
OMP Routes Prefix routes (IPv4/IPv6) dari VPN
TLOC Routes Transport Location - endpoint info untuk tunnels
Service Routes Routes ke network services (firewall, etc)

TLOC (Transport Location)

TLOC adalah identifier unik untuk setiap WAN transport pada edge device:

TLOC Format
TLOC = System-IP + Color + Encapsulation
Example: 10.0.0.1 + biz-internet + ipsec

Control Plane Connections

Connection Establishment Flow:

1️⃣ Edge → vBond

  • Edge device initiates connection ke vBond
  • vBond authenticates device certificates
  • vBond provides vSmart dan vManage addresses

2️⃣ Edge → vSmart

  • DTLS/TLS tunnel established ke vSmart
  • OMP session comes up
  • Route dan policy exchange dimulai

3️⃣ Edge → vManage

  • Management tunnel established
  • Configuration push dan monitoring aktif

Data Plane - IPsec Tunnels

Data plane menggunakan IPsec tunnels untuk secure transport antar edge devices.

Key Exchange Process:

  • vSmart-mediated: vSmart memfasilitasi key exchange antar edges
  • Symmetric Keys: AES-256-GCM untuk encryption
  • Key Rotation: Keys di-rotate secara berkala untuk security
Parameter Value
Encryption AES-256-GCM
Authentication SHA-256
Key Lifetime Configurable (default varies)
Anti-Replay Enabled by default

BFD - Tunnel Health Detection

BFD (Bidirectional Forwarding Detection) digunakan untuk mendeteksi tunnel health dan mengukur path quality.

BFD Metrics:

Latency

Round-trip time measurement

Loss

Packet loss percentage

Jitter

Latency variation

Application-Aware Routing

BFD metrics digunakan oleh Application-Aware Routing untuk memilih best path berdasarkan SLA requirements.
